Electronic devices rely on thousands of connections working flawlessly together. While advanced components often receive the most attention, the humble solder joint is what keeps everything connected.

A single failed solder joint can cause intermittent signals, system malfunctions, overheating, or complete product failure. In industries such as automotive, aerospace, telecommunications, and industrial automation, even a minor connection issue can lead to costly downtime and warranty claims.

Understanding the top reasons for solder joint failure helps manufacturers improve reliability, reduce defects, and ensure long-term product performance.

What Is a Solder Joint and Why Does It Matter?

A solder joint is the electrical and mechanical connection created when solder bonds a component lead to a printed circuit board (PCB). These joints allow electrical current to flow between components while also securing them physically to the board.

When properly formed, solder joints provide:

• Reliable electrical conductivity
• Mechanical stability
• Resistance to vibration and thermal stress
• Long-term product reliability

However, when solder joints are poorly formed or exposed to excessive stress, solder joint failure can occur, affecting the performance of the entire system.

Why Solder Joint Failure Is a Major Concern in Electronics Manufacturing?

The reliability of a PCB often depends on the quality of its solder joints. Industry studies have shown that interconnection failures remain one of the leading causes of electronic assembly failures.

Poor solder joints can result in:

• Product recalls
• Increased warranty costs
• Rework and repair expenses
• Production delays
• Customer dissatisfaction

According to manufacturing quality studies, the cost of correcting defects after product shipment can be several times higher than identifying and fixing them during production.

This is why manufacturers invest heavily in PCB assembly quality control, inspection processes, and testing procedures.

Top Reasons for Solder Joint Failure:

The most common causes of solder joint failure can help manufacturers prevent reliability issues before products reach the field.

Cold Solder Joints:

A cold solder joint occurs when solder does not melt or flow properly during assembly.

Common causes include:

• Insufficient soldering temperature
• Improper heating duration
• Poor wetting of surfaces
• Contaminated components

Cold joints often appear dull, rough, or grainy instead of smooth and shiny.

Impact:

• Weak electrical connections
• Intermittent operation
• Increased resistance
• Early product failure

Thermal Cycling and Temperature Stress:

Electronic devices frequently experience temperature changes during operation.

As components heat and cool, materials expand and contract at different rates. Over time, this repeated movement can create microscopic cracks within solder joints.

Industries most affected include:

• Automotive electronics
• Aerospace systems
• Industrial control equipment
• Outdoor communication devices

Thermal cycling is one of the most significant causes of solder joint failure in long-life electronic products.

Poor PCB Design and Component Layout:

Even the best manufacturing process cannot fully compensate for poor design.

Design issues that contribute to solder joint defects include:

• Improper pad sizing
• Uneven copper distribution
• Inadequate thermal relief
• Poor component spacing

Design-for-Manufacturing (DFM) reviews help identify these issues before production begins.

Mechanical Stress and Vibration:

Products exposed to constant movement face additional reliability challenges.

Examples include:

• Automotive control systems
• Industrial machinery
• Transportation electronics
• Aerospace applications

Continuous vibration can weaken solder joints and eventually cause cracking or separation.

The larger and heavier the component, the greater the stress placed on the solder connection.

Insufficient or Excess Solder:

The amount of solder used directly affects joint integrity.

Insufficient Solder:

Can lead to:

• Weak bonding
• Open circuits
• Reduced mechanical strength

Excess Solder:

Can result in:

• Solder bridges
• Electrical shorts
• Inspection failures

These issues are among the most common soldering defects found during PCB assembly.

Flux Residue and Contamination:

Clean surfaces are critical for creating reliable solder joints.

Contamination may come from:

• Dust
• Oils
• Moisture
• Fingerprints
• Residual flux

Contaminants interfere with solder wetting and can eventually cause corrosion.

Over time, contamination-related issues may develop into serious solder joint failure problems.

Voids and Air Pockets:

Voids are trapped air pockets inside a solder joint.

These hidden defects reduce:

• Mechanical strength
• Electrical performance
• Heat dissipation capability

Voids are particularly problematic in:

• Power electronics
• LED assemblies
• High-current applications

Because they are often invisible from the surface, X-Ray inspection is commonly used to detect them.

Lead-Free Solder Challenges:

Environmental regulations have increased the adoption of lead-free solder.

While beneficial for compliance, lead-free alloys present unique challenges:

• Higher processing temperatures
• Increased brittleness
• Greater sensitivity to thermal stress

Manufacturers must carefully optimize soldering processes to maintain reliability.

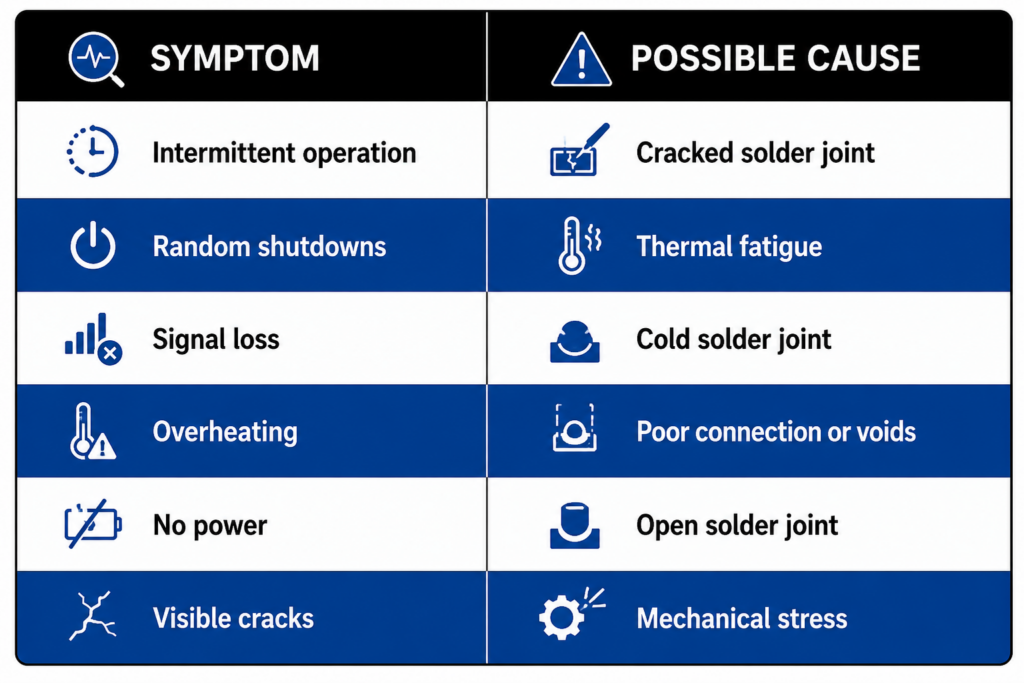

Common Signs of Solder Joint Failure:

Recognizing failure symptoms early can prevent more extensive damage.

Identifying these warning signs quickly can reduce repair costs and improve product reliability.

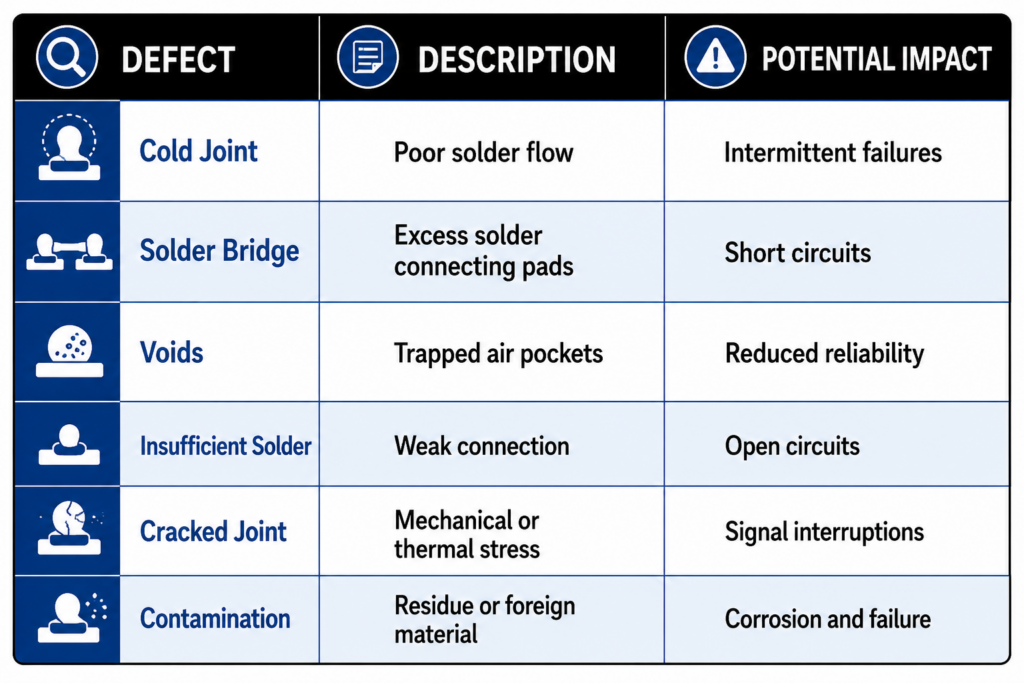

Common Soldering Defects and Their Impact:

The following table summarizes some of the most frequently observed common soldering defects in electronics manufacturing.

How Electronics Manufacturers Prevent Solder Joint Failures?

Preventing defects requires a combination of process control, inspection, and industry best practices.

Process Optimization:

Manufacturers monitor:

• Reflow temperature profiles
• Solder paste quality
• Placement accuracy
• Process consistency

These controls significantly reduce solder joint defects before they occur.

Advanced Inspection:

Quality-focused manufacturers use:

• Automated Optical Inspection (AOI)
• X-Ray Inspection
• Visual Inspection
• Functional Testing

These tools identify defects early in the manufacturing process.

Compliance with IPC Soldering Standards:

Following IPC soldering standards ensures solder joints meet recognized industry requirements for workmanship and reliability.

IPC guidelines provide manufacturers with clear acceptance criteria for:

• Joint appearance
• Solder coverage
• Defect classification
• Inspection requirements

Compliance with IPC soldering standards helps improve consistency across production runs.

The Role of PCB Assembly Quality Control:

Strong PCB assembly quality control programs are essential for preventing defects and maintaining product reliability.

Effective quality control includes:

• Incoming material inspection
• Process monitoring
• AOI verification
• X-Ray analysis
• Functional testing
• Root cause analysis

When combined, these processes dramatically reduce manufacturing defects and improve product performance.

Simply put, quality is not inspected into a product it is built into the process.

Why Choosing the Right EMS Partner Matters?

Reliable solder joints don’t happen by chance.

They result from:

• Experienced engineering teams
• Controlled manufacturing processes
• Advanced inspection technologies
• Continuous quality improvement

An experienced Electronics Manufacturing Services (EMS) provider understands how to identify potential risks before they become costly failures.

By prioritizing PCB assembly quality control, adhering to IPC soldering standards, and utilizing advanced testing methods, manufacturers can significantly improve product reliability and reduce field failures.

Conclusion:

Solder joints may be small, but their impact on product performance is enormous.

The top reasons for solder joint failure include cold solder joints, thermal cycling, contamination, mechanical stress, insufficient solder, voids, and poor design practices. Fortunately, most of these issues are preventable through proper engineering, process control, inspection, and testing.

At Cygnus Electronics, we help OEMs and manufacturers improve product reliability through precision PCB assembly, advanced inspection technologies, rigorous testing, and industry-leading quality assurance practices. Whether you’re building prototypes or scaling production, our team is committed to delivering electronic assemblies that perform reliably in the real world.

Contact Cygnus Electronics today to discuss your next manufacturing project.

The post Top Reasons for Solder Joint Failure appeared first on Cygnus.

According to IPC, poor solder connections remain one of the leading causes of electronic assembly failures. Studies have shown that manufacturing defects account for a significant percentage of field failures, making inspection a critical part of the production process.

This raises an important question for manufacturers: when it comes to IPC compliance, which inspection method performs better: Automated Optical Inspection (AOI) or X-Ray inspection?

In this guide, we’ll compare AOI vs X-Ray inspection, explain how each technology works, and determine how they contribute to meeting IPC quality requirements.

Understanding IPC Standards in PCB Inspection:

The electronics industry relies on IPC standards to establish consistent quality and workmanship requirements for printed circuit board assemblies.

Some of the most commonly referenced standards include:

• IPC-A-610 (Acceptability of Electronic Assemblies)
• IPC J-STD-001 (Requirements for Soldered Electrical and Electronic Assemblies)
• IPC-7711/7721 (Rework and Repair Standards)

These standards define what constitutes an acceptable solder joint, component placement, and assembly quality.

Effective IPC standards PCB inspection processes help manufacturers:

• Improve product reliability
• Reduce defect rates
• Minimize rework costs
• Meet customer and regulatory requirements

Whether using AOI, X-Ray, or both, the ultimate goal is ensuring products comply with these quality benchmarks.

What Is AOI (Automated Optical Inspection)?

Automated Optical Inspection uses high-resolution cameras and advanced imaging software to inspect printed circuit boards during production.

The system compares captured images against predefined standards or reference models to identify visible defects.

Common Defects AOI Can Detect:

AOI is highly effective at identifying:

• Missing components
• Incorrect component placement
• Wrong component orientation
• Solder bridges
• Insufficient solder
• Polarity issues

Because AOI can inspect boards quickly, it is widely used in high-volume manufacturing environments.

Advantages of AOI:

Fast Inspection Speed:

AOI systems can inspect thousands of solder joints within minutes, making them ideal for production lines.

Early Defect Detection:

Problems can be identified immediately after assembly, reducing downstream failures.

Cost-Effective Quality Control:

Compared to more advanced inspection technologies, AOI offers lower operating costs.

Limitations of AOI:

Despite its advantages, AOI only evaluates visible areas of a board.

It cannot inspect:

• Hidden solder joints
• Internal component connections
• Ball Grid Array (BGA) solder balls beneath packages

As PCB designs continue to evolve, these limitations become increasingly important.

What Is X-Ray Inspection?

Unlike AOI, X-Ray inspection uses electromagnetic radiation to create images of internal structures that cannot be seen from the surface.

This makes X-Ray inspection electronics manufacturing particularly valuable for modern assemblies that contain hidden connections.

Common Defects X-Ray Can Detect:

X-Ray systems can identify:

• BGA solder joint defects
• Voids within solder joints
• Hidden bridging
• Misaligned internal connections
• Insufficient solder beneath components

Because the inspection is non-destructive, manufacturers can analyze internal structures without damaging the board.

Advantages of X-Ray Inspection:

Visibility Beneath Components:

One of the biggest strengths of X-Ray inspection electronics manufacturing is the ability to inspect hidden solder joints.

Superior BGA Analysis:

As BGA packages become more common, X-Ray provides a reliable method for verifying connection quality.

Enhanced Quality Assurance:

Manufacturers gain deeper insight into assembly quality, reducing the risk of defects escaping into the field.

Limitations of X-Ray:

While powerful, X-Ray inspection typically involves:

• Higher equipment costs
• Slower inspection times
• Specialized training requirements

For this reason, many manufacturers use X-Ray strategically rather than on every board.

Also Read: IPC Standards for Solder Joint Quality Explained Simply

AOI vs X-Ray Inspection for PCB Assembly: A Side-by-Side Comparison

When evaluating AOI vs X-Ray inspection for PCB assembly, it’s important to understand that each technology serves a different purpose.

For standard SMT assemblies, AOI may provide sufficient coverage. For complex boards with hidden solder joints, X-Ray becomes increasingly valuable.

Which Inspection Method Meets IPC Standards Better?

Many manufacturers assume one technology is superior to the other, but IPC standards do not specifically mandate a single inspection method.

Instead, IPC focuses on whether the final product meets established quality requirements.

Where AOI Supports IPC Compliance?

AOI helps manufacturers verify:

• Component placement accuracy
• Solder quality
• Polarity correctness
• Visible assembly defects

This makes AOI an important tool in IPC standards PCB inspection programs.

Where X-Ray Supports IPC Compliance?

X-Ray inspection helps verify:

• Hidden solder joints
• BGA connections
• Internal solder voids
• Advanced package integrity

As electronics become more compact, these capabilities play an increasingly important role in compliance verification.

The Real Answer:

When comparing AOI vs X-Ray Inspection, the better solution often depends on the complexity of the assembly.

For simple boards, AOI may be sufficient.

For assemblies with BGAs, QFNs, or hidden solder joints, X-Ray often provides the deeper level of inspection needed to ensure quality and reliability.

Why Leading Manufacturers Use Both AOI and X-Ray?

Many of the most successful electronics manufacturers combine both technologies to maximize defect detection.

Using both inspection methods provides:

Greater Inspection Coverage:

Visible and hidden defects can be identified throughout the assembly process.

Improved Product Reliability:

Research from industry reliability studies shows that early defect detection significantly reduces field failures and warranty costs.

Reduced Rework Expenses:

Finding defects before products leave the facility is substantially less expensive than correcting failures after shipment.

Stronger Customer Confidence:

Customers gain assurance that products have undergone comprehensive inspection procedures.

This is why many advanced PCB manufacturing inspection services integrate AOI and X-Ray into their quality control workflow.

Choosing the Right Inspection Strategy:

The best inspection strategy depends on several factors:

• PCB complexity
• Component types
• Production volume
• Reliability requirements
• Customer specifications

For standard assemblies, AOI may offer excellent value and efficiency. For mission-critical electronics in aerospace, medical, automotive, and industrial applications, X-Ray often becomes essential.

Many providers of professional PCB manufacturing inspection services recommend a hybrid approach to achieve maximum quality assurance.

Partner With a Manufacturer That Prioritizes Quality:

Inspection technology plays a crucial role in product reliability, but equipment alone isn’t enough. Effective quality control requires experienced engineers, validated processes, and strict adherence to industry standards.

At Cygnus Electronics, quality is built into every stage of the manufacturing process. Our comprehensive inspection capabilities, advanced manufacturing practices, and commitment to IPC compliance help ensure every PCB assembly meets the highest standards of performance and reliability.

Whether your project requires AOI, X-Ray inspection, or a complete quality assurance strategy, Cygnus Electronics delivers the expertise and precision needed to support your success.

Contact Cygnus Electronics today to learn how our advanced PCB manufacturing and inspection solutions can help improve product quality, reduce defects, and accelerate production confidence.

Frequently Asked Questions

Is AOI enough for IPC compliance?

AOI can support IPC compliance for many PCB assemblies, especially when defects are visible. However, complex boards with hidden solder joints may require X-Ray inspection for complete verification.

Why is X-Ray inspection important for BGA components?

BGA solder joints are located underneath the component package and cannot be visually inspected. X-Ray allows manufacturers to evaluate these hidden connections without damaging the assembly.

Do IPC standards require X-Ray inspection?

No. IPC standards generally define quality and acceptability requirements rather than mandating specific inspection technologies.

Should manufacturers use both AOI and X-Ray inspection?

In many cases, yes. Combining AOI and X-Ray provides broader defect detection coverage and supports more comprehensive quality assurance programs.

The post AOI vs X-Ray Inspection: Which Meets IPC Standards Better? appeared first on Cygnus.

That’s where IPC Class 1 2 and 3 standards come into play.

These classifications help manufacturers define how reliable, durable, and defect-free a PCB assembly needs to be depending on the product’s application. Whether it’s consumer electronics or mission-critical aerospace systems, understanding IPC classifications is essential for both manufacturers and product owners.

In this guide, we’ll explain the differences between IPC Class 1, 2, and 3 in simple terms, how they affect PCB assembly quality, and why these standards matter in modern electronics manufacturing.

What Are IPC Standards in Electronics Manufacturing?

IPC stands for the Association Connecting Electronics Industries. It is a globally recognized organization that develops manufacturing and inspection guidelines for the electronics industry.

These IPC standards for PCB assembly help ensure products meet consistent quality, reliability, and safety expectations.

One of the most important standards is the IPC-A-610 standards, which define acceptable and unacceptable conditions for electronic assemblies, including solder joints, component placement, cleanliness, and overall workmanship.

Why IPC Standards Matter?

Without standardization, PCB manufacturing quality could vary significantly between manufacturers. IPC standards create a common language for:

• PCB assembly quality standards
• Inspection processes
• Solder joint acceptance
• Product reliability expectations
• Manufacturing consistency

IPC standards are globally recognized quality guidelines used to ensure PCB assemblies meet specific reliability and performance requirements.

For a deeper understanding of solder quality requirements, check out IPC Standards for Solder Joint Quality.

What is IPC Class 1?

IPC Class 1 represents the lowest reliability level in electronics manufacturing.

These products are designed primarily for basic functionality rather than long-term durability. Minor cosmetic imperfections or lower inspection requirements are generally acceptable as long as the device works properly.

Typical Applications of IPC Class 1:

Class 1 is commonly used in:

• Toys
• Basic household electronics
• Low-cost gadgets
• Disposable or short-life electronic products

Key Characteristics of IPC Class 1:

Manufacturers often choose Class 1 for products where occasional defects or shorter lifespans are considered acceptable.

What is IPC Class 2?

IPC Class 2 is the most widely used classification in commercial electronics manufacturing.

It offers a balance between manufacturing cost and product reliability. Products built to Class 2 standards are expected to operate reliably for extended periods without critical failures.

This is where most commercial and industrial electronics fall.

Common Applications of IPC Class 2:

Examples include:

• Laptops
• Communication equipment
• Industrial control systems
• Consumer appliances
• Automotive electronics

Key Characteristics of IPC Class 2:

When comparing IPC Class 2 vs Class 3, Class 2 focuses more on reliable operation under normal conditions, while Class 3 demands maximum reliability under critical conditions.

What is IPC Class 3?

IPC Class 3 is the highest reliability standard in PCB manufacturing.

These products are designed for environments where failure is simply not an option. Manufacturing processes, soldering quality, and inspection procedures are significantly stricter.

An IPC Class 3 PCB assembly must meet extremely high workmanship standards to ensure maximum durability and reliability.

Industries That Use IPC Class 3:

Class 3 is commonly used in:

• Aerospace systems
• Military electronics
• Medical devices
• Defense equipment
• Life-support systems
• Critical industrial controls

Key Characteristics of IPC Class 3:

IPC Class 3 is the highest PCB assembly quality standard designed for mission-critical electronics where reliability is essential.

Because Class 3 demands tighter manufacturing tolerances and enhanced inspection procedures, it also increases production complexity and cost.

IPC Class 1 vs Class 2 vs Class 3 — Key Differences:

Understanding the difference between IPC Class 1 2 and 3 helps businesses choose the right manufacturing quality level for their products.

Why Class 3 Costs More?

An IPC Class 3 PCB assembly requires:

• Stricter inspection processes
• Better solder joint quality
• Higher workmanship standards
• Advanced testing procedures
• Skilled technicians

These added requirements increase manufacturing time and quality control efforts.

Why IPC Standards Matter in PCB Assembly?

Modern electronics are becoming smaller, faster, and more complex. Poor soldering or inconsistent assembly quality can lead to expensive failures.

According to industry studies, electronics defects and failures cost manufacturers billions annually due to recalls, repairs, warranty claims, and downtime.

Following proper IPC soldering standards helps manufacturers:

• Reduce product failures
• Improve manufacturing consistency
• Increase customer trust
• Meet regulatory requirements
• Enhance long-term reliability

These standards also play a major role in maintaining electronic product durability standards across industries.

How PCB Manufacturers Achieve IPC Compliance?

Meeting PCB assembly quality standards requires more than just good soldering.

Professional manufacturers implement structured quality control systems throughout the production process.

Common IPC Compliance Methods:

Automated Optical Inspection (AOI):

AOI systems inspect solder joints and component placement for defects.

X-Ray Inspection:

Used for hidden solder joints and complex assemblies.

Skilled Soldering Processes:

Trained operators follow strict IPC soldering standards during production.

Process Monitoring:

Manufacturers track temperature profiles, solder paste consistency, and assembly parameters.

IPC-Certified Technicians:

Certified operators understand IPC-A-610 standards and acceptance criteria.

To further improve manufacturing consistency and inspection accuracy, many manufacturers are now integrating AI-driven technologies into assembly operations.

How Solder Joint Reliability Impacts IPC Compliance?

Even the best-designed PCB can fail if solder joints are weak or inconsistent.

Reliable solder joints are critical for:

• Electrical conductivity
• Mechanical strength
• Thermal performance
• Long-term product durability

Manufacturers often focus heavily on solder joint inspection because poor soldering remains one of the leading causes of PCB failures.

If you want to learn more about improving solder performance, read How to Improve Solder Joint Reliability in PCB Assembly.

Which IPC Class Should You Choose?

Choosing between IPC Class 2 vs Class 3 depends on your product requirements, industry regulations, and reliability expectations.

Recommended IPC Classes by Product Type:

Important Factors to Consider:

Product Reliability:

How critical is product uptime?

Operating Environment:

Will the product operate in harsh conditions?

Risk Tolerance:

Can occasional failures be tolerated?

Budget:

Higher IPC classes increase production and inspection costs.

Product Lifespan:

Long-life products often require higher manufacturing standards.

Why Experienced Manufacturing Partners Matter?

Achieving consistent IPC compliance requires expertise, advanced inspection systems, and disciplined manufacturing processes.

Working with an experienced electronics manufacturing partner helps businesses:

• Improve product reliability
• Reduce manufacturing defects
• Ensure compliance with industry standards
• Scale production efficiently

Cygnus Electronics supports manufacturers with structured PCB assembly processes, advanced quality inspection systems, and reliable production workflows designed to meet modern electronics manufacturing demands.

Whether your project requires commercial-grade reliability or high-performance IPC Class 3 PCB assembly, choosing the right manufacturing partner can directly impact product quality and long-term success.

Final Thoughts:

IPC Class 1 2 and 3 is essential for anyone involved in electronics manufacturing or product development.

Each classification serves a different purpose:

• Class 1 focuses on basic functionality
• Class 2 balances cost and reliability
• Class 3 delivers maximum performance and durability

As electronics continue evolving, maintaining strong PCB manufacturing quality control processes and following recognized IPC standards for PCB assembly becomes even more important.

The right IPC classification helps manufacturers deliver safer, more reliable, and longer-lasting electronic products.

FAQs

What is the difference between IPC Class 2 and Class 3?

The main difference between IPC Class 2 vs Class 3 is reliability requirements. Class 2 is designed for commercial electronics with reliable long-term operation, while Class 3 is intended for mission-critical products where failure is unacceptable.

Is IPC Class 3 required for medical devices?

Many medical and aerospace applications use IPC Class 3 PCB assembly because these products require the highest level of reliability and safety.

Which IPC class is most common in electronics manufacturing?

IPC Class 2 is the most widely used standard because it balances manufacturing cost, reliability, and product performance for commercial electronics.

What does IPC stand for in PCB assembly?

IPC stands for the Association Connecting Electronics Industries. It develops global standards for electronics manufacturing, inspection, and quality control.

The post What is IPC Class 1, 2, and 3? Explained for Beginners appeared first on Cygnus.

Without the right flux, solder joints can fail, components may not bond properly, and long-term PCB reliability can suffer. From consumer electronics to aerospace systems, choosing the correct flux directly impacts manufacturing quality and product performance.

In this guide, we’ll break down the main types of flux in PCB assembly, compare no-clean flux vs water-soluble flux, explain the role of rosin flux in PCB assembly, and help manufacturers understand which option works best for different applications.

What Is Flux in PCB Assembly?

Flux is a chemical cleaning agent used during soldering to remove oxidation, improve solder flow, and help create strong electrical connections between components and the PCB.

During soldering, metal surfaces naturally develop oxidation when exposed to air. This oxidation prevents solder from bonding correctly. Flux removes these contaminants and improves solder adhesion.

The main functions of flux include:

• Removing oxides from metal surfaces
• Improving solder wetting
• Preventing re-oxidation during heating
• Enhancing solder joint reliability
• Reducing soldering defects

In simple terms, flux helps solder “stick” properly.

Without proper flux, manufacturers may experience:

• Cold solder joints
• Poor conductivity
• Solder bridging
• Weak mechanical bonds
• Corrosion-related failures

This is why selecting the right PCB soldering flux types is critical in electronics manufacturing.

Why Flux Matters More in Modern PCB Assembly?

Today’s PCBs are far more advanced than older electronic boards. Manufacturers now deal with:

• Miniaturized SMT components
• Fine-pitch packages
• High-density PCB layouts
• Lead-free soldering temperatures
• Faster automated production lines

These factors make flux performance even more important.

According to IPC industry studies, soldering defects account for a significant percentage of PCB manufacturing failures, with poor wetting and contamination among the leading causes in assembly defects.

As PCB complexity increases, manufacturers need better:

• Solder wetting improvement
• Residue control
• Thermal stability
• Cleaning compatibility
• Reliability under harsh conditions

This is where understanding the differences between flux types becomes essential.

Main Types of Flux in PCB Assembly:

There are three major types of flux in PCB assembly commonly used in electronics manufacturing:

1. No-Clean Flux
2. Water-Soluble Flux
3. Rosin Flux

Each type offers different advantages depending on the application, cleaning requirements, reliability standards, and production environment.

No-Clean Flux Explained

What Is No-Clean Flux?

No-clean flux is designed to leave minimal residue after soldering, reducing or eliminating the need for post-solder cleaning.

It is one of the most widely used PCB soldering flux types in high-volume electronics manufacturing because it simplifies production and lowers operational costs.

Advantages of No-Clean Flux:

Faster Manufacturing:

Since cleaning is often unnecessary, production moves faster.

Lower Operational Costs:

Manufacturers save on:

• Cleaning chemicals
• Water usage
• Cleaning equipment
• Labor costs

Better for High-Volume SMT Assembly:

No-clean flux works especially well in automated SMT production environments.

Environmentally Friendlier

Reduced chemical cleaning means lower environmental impact.

Challenges of No-Clean Flux:

While efficient, no-clean flux does have limitations.

Flux Residue in PCB Assembly:

Even minimal residue can sometimes:

• Affect conformal coating adhesion
• Complicate inspection
• Cause reliability concerns in sensitive applications

Difficult Rework:

Residue may become difficult to remove during PCB repairs.

Not Ideal for Harsh Environments:

Industries like aerospace and medical electronics may require cleaner assemblies with stricter reliability standards.

Water-Soluble Flux Explained:

What Is Water-Soluble Flux?

Water-soluble flux contains organic compounds designed for aggressive oxide removal and excellent solderability.

Unlike no-clean flux, it requires a full PCB cleaning process after soldering.

Advantages of Water-Soluble Flux:

Excellent Solder Wetting Improvement:

Water-soluble flux provides outstanding solder flow and bonding performance.

This makes it ideal for:

• Complex SMT assemblies
• Fine-pitch components
• High-density PCBs

Better Oxide Removal:

It performs well on heavily oxidized surfaces.

Superior Reliability:

When cleaned correctly, it leaves very little contamination behind.

Challenges of Water-Soluble Flux:

Mandatory Cleaning Process:

Improper cleaning can leave ionic contamination behind, increasing corrosion risks.

Higher Manufacturing Costs:

Manufacturers must invest in:

• Cleaning systems
• DI water systems
• Drying equipment
• Process monitoring

Moisture Sensitivity:

Residual contamination can absorb moisture and impact PCB reliability.

Rosin Flux in PCB Assembly:

What Is Rosin Flux?

Rosin flux in PCB assembly is made from natural pine resin and has been used in electronics manufacturing for decades.

It remains popular in specialized applications because of its strong oxidation protection and reliable soldering performance.

Types of Rosin Flux:

R (Rosin):

Mild activation level with low cleaning power.

RMA (Rosin Mildly Activated):

Balanced cleaning ability and residue characteristics.

RA (Rosin Activated):

Highly aggressive cleaning action for difficult surfaces.

Advantages of Rosin Flux:

Reliable Soldering Performance:

Rosin flux performs consistently across many soldering applications.

Good Oxidation Protection:

It helps protect metal surfaces during soldering.

Proven Industry History:

Many military and industrial applications still use rosin-based formulations.

Challenges of Rosin Flux:

Residue Removal:

Rosin residue often requires solvent cleaning.

Smoke and Fumes:

Rosin fumes may require proper ventilation systems.

Environmental Concerns:

Traditional solvent cleaning methods may not align with modern environmental standards.

No-Clean Flux vs Water-Soluble Flux vs Rosin Flux:

Here’s a practical comparison of the most common PCB soldering flux types:

Lead-Free Soldering Flux Challenges:

The transition toward lead-free soldering flux systems has introduced new manufacturing challenges.

Lead-free solder alloys melt at higher temperatures compared to traditional tin-lead solder. This increases:

• Thermal stress
• Oxidation risk
• Flux activation demands

As a result, manufacturers now require fluxes with:

• Better thermal stability
• Stronger oxide removal
• Improved residue control

According to electronics manufacturing industry reports, lead-free soldering can increase soldering temperatures by 30–40°C compared to traditional processes.

This makes flux chemistry more important than ever.

The Importance of Flux Residue Control:

One of the biggest concerns in modern assembly is flux residue in PCB assembly.

Improper residue management can cause:

• Corrosion
• Dendritic growth
• Electrical leakage
• Signal interference
• Reduced product lifespan

This is especially critical in:

• Medical devices
• Automotive electronics
• Aerospace systems
• High-frequency PCBs

Manufacturers often perform:

• Ionic contamination testing
• Visual inspection
• SIR testing (Surface Insulation Resistance)
• Cleanliness verification

to ensure long-term PCB reliability.

How to Choose the Right Flux?

There is no universal “best” flux.

The right choice depends on:

• PCB complexity
• Reliability requirements
• Production volume
• Cleaning capabilities
• Environmental conditions
• Industry standards

Choose No-Clean Flux If:

• You need faster production
• Cost efficiency matters
• Minimal cleaning is preferred

Choose Water-Soluble Flux If:

• Reliability is critical
• You can support full cleaning systems
• Your application requires ultra-clean assemblies

Choose Rosin Flux If:

• You need strong oxidation protection
• You work in specialized industrial applications
• Traditional processes are preferred

Flux Selection Trends in Electronics Manufacturing:

Modern PCB manufacturing is shifting toward:

• Low-residue formulations
• Eco-friendly chemistries
• Better lead-free compatibility
• Automated flux control systems

Manufacturers are increasingly focusing on:

• Process consistency
• Lower defect rates
• Sustainability
• High-reliability assembly standards

This evolution continues to drive innovation in lead-free soldering flux technologies and automated cleaning systems.

Final Thoughts:

Choosing between no-clean flux vs water-soluble flux or deciding whether rosin flux in PCB assembly is suitable for your application can significantly impact manufacturing quality, production efficiency, and long-term reliability.

The best flux is not simply the cheapest or fastest option. It’s the one that aligns with your:

• PCB design
• Reliability goals
• Production process
• Industry requirements

As electronics continue becoming more advanced, flux chemistry remains one of the most important foundations of reliable PCB assembly.

Need Reliable PCB Assembly Support?

Cygnus Electronics provides professional PCB assembly and electronics manufacturing solutions with a strong focus on quality, process control, SMT/THT assembly, inspection, and reliable production practices. Whether you need prototype builds or scalable manufacturing support, their team helps ensure dependable electronics manufacturing outcomes.

The post Types of Flux in PCB Assembly: No-Clean vs Water-Soluble vs Rosin appeared first on Cygnus.

That’s where IPC standards for solder joints come in. Not to complicate things but to make sure your electronics actually work when they leave the factory.

Let’s break it down without turning it into a technical headache.

What Are IPC Standards?

IPC standards are globally accepted guidelines that define how electronic products should be designed, assembled, and inspected.

Think of them as the rulebook for electronics manufacturing:

• What a good solder joint looks like
• What counts as a defect
• What level of quality is acceptable

Without these standards, “quality” becomes subjective and that’s never a good idea in production.

Why IPC Standards Matter for Solder Joint Quality?

Ignoring standards might save time upfront. It almost always costs more later.

Here’s why they matter:

Consistency Across Production:

Every unit follows the same quality benchmark.

Reduced Defects and Rework:

Clear criteria mean fewer mistakes slipping through.

Improved Product Reliability:

Strong solder joints = longer-lasting electronics.

Industry Compliance:

Many industries require strict adherence to IPC soldering standards.

Key IPC Standards for Solder Joints:

Not all standards are created equal. These are the ones that actually matter:

IPC-A-610:

Focuses on the acceptability of electronic assemblies. It visually defines what’s acceptable and what’s not.

IPC-J-STD-001:

Covers the requirements for soldered electrical assemblies.This is more process-focused on how soldering should be done.

IPC-7711/7721:

Deals with rework and repair standards. Because let’s be honest, mistakes happen.

If you’re serious about solder joint quality standards, these are non-negotiable.

IPC Solder Joint Classifications (Class 1, 2, 3):

Not every product needs the same level of perfection.

Class 1 – General Electronics:

Basic consumer products where performance isn’t critical.

Class 2 – Dedicated Service Electronics:

Products that need reliability but aren’t life-critical.

Class 3 – High-Reliability Electronics:

Medical, aerospace, and critical systems. Failure is not an option.

Choosing the wrong class can either increase costs unnecessarily or worse, reduce reliability.

Also Read: Impact of Incorrect Flux Volume on Soldering Quality and Reliability

What Makes a Good Solder Joint According to IPC?

A proper solder joint isn’t about looking “okay.” It has specific characteristics:

• Smooth and shiny appearance
• Proper wetting on both pad and lead
• Well-formed fillet
• No cracks, voids, or gaps

If your joints don’t meet these basics, they’re already a risk.

Also Read: What Does Flux Do in Soldering? (Complete Guide)

Common Soldering Defects Identified by IPC:

Even with standards, defects still happen. The difference is you can catch them early.

Cold Solder Joints:

Weak connections due to improper heating.

Solder Bridging:

Unwanted connections between pads.

Insufficient Solder:

Not enough material to form a strong bond.

Voiding:

Air pockets that weaken the joint.

These are the same issues that quietly explain why solder joints fail in electronics.

How to Meet IPC Standards in PCB Assembly?

Meeting standards isn’t about memorizing rules. It’s about controlling your process.

Train and Certify Your Team:

Skilled operators make a huge difference.

Maintain Equipment:

Inconsistent machines = inconsistent results.

Use Quality Materials:

Cheap inputs lead to poor outputs. Always.

Implement Proper Inspection

AOI, X-ray, and testing ensure compliance.

Following IPC standards for solder joints isn’t optional if you care about quality—it’s essential.

Final Thoughts:

IPC standards aren’t there to slow you down. They’re there to protect your product, your reputation, and your bottom line. Because in electronics manufacturing, small defects don’t stay small for long.

FAQs

What are IPC standards in electronics?

IPC standards are global guidelines that define quality, reliability, and manufacturing processes for electronic products.

 Which IPC standard is used for solder joint quality?

IPC-A-610 and IPC-J-STD-001 are the most widely used standards for solder joint quality and assembly requirements.

What are IPC Class 1, 2, and 3 products?

They represent reliability levels—Class 1 for basic products, Class 2 for reliable electronics, and Class 3 for critical applications.

How do IPC standards improve PCB quality?

They provide clear acceptance criteria, reduce defects, and ensure consistent manufacturing quality across production.

The post IPC Standards for Solder Joint Quality Explained Simply appeared first on Cygnus.

If you’re deciding between AOI vs X-ray inspection in SMT, this guide will break it down clearly, practically, and from a real manufacturing perspective so you can make the right call.

What Is AOI and X-Ray Inspection in SMT?

AOI (Automated Optical Inspection) uses high-resolution cameras to visually inspect the PCB surface for defects like misalignment, missing components, or solder bridging.

X-ray inspection PCB systems, on the other hand, look inside the board detecting hidden defects in solder joints, especially in complex packages like BGAs.

In simple terms:

• AOI = What you can see
• X-ray = What you can’t see

Why PCB Inspection Matters in SMT Assembly?

Here’s the reality: most PCB failures don’t happen in design, they happen in manufacturing.

• Up to 70% of electronic failures are linked to solder joint issues
• Rework can increase production costs by 15–30%
• Field failures damage brand trust and increase warranty claims

A strong PCB quality inspection process ensures:

• Early defect detection
• Lower rework costs
• Higher product reliability

How AOI Inspection Works in SMT?

AOI inspection PCB systems operate as your first line of defense in the production line.

Step-by-Step AOI Process:

1. High-speed cameras capture PCB images
2. Software compares images with reference data (Gerber files)
3. AI/algorithms detect inconsistencies
4. Defects are flagged for review

What AOI Can Detect:

• Missing components
• Misaligned parts
• Polarity errors
• Solder bridges
• Excess or insufficient solder

AOI is fast, scalable, and ideal for high-volume production.

How X-Ray Inspection Works in PCB Assembly?

When defects hide beneath components, X-ray inspection PCB becomes essential.

How It Works:

• X-rays penetrate PCB layers
• Internal structures are visualized
• Software analyzes solder joints and connections

What X-Ray Inspection Detects:

• Voids in solder joints
• Cracks and internal fractures
• Hidden bridges
• Insufficient solder under components

This is especially critical for:

BGA inspection methods:

• QFN packages
• Multilayer boards

If your product uses advanced components, X-ray inspection solder joints is non-negotiable.

AOI vs X-Ray Inspection in SMT: Key Differences

This comparison makes one thing clear: Both methods solve different problems.

Advantages of AOI in SMT Manufacturing:

Why do most manufacturers rely heavily on AOI?

• Fast inline inspection
• Cost-effective for mass production
• Detects common assembly defects
• Easy integration into production lines

For basic PCB inspection techniques, AOI is the backbone.

Advantages of X-Ray Inspection in PCB Assembly:

When precision matters, X-ray delivers.

• Detects hidden defects
• Essential for BGA inspection
• High accuracy in solder joint evaluation
• Reduces field failure risks

For critical applications, X-ray inspection PCB is a game-changer.

Limitations of AOI vs X-Ray Inspection:

AOI Limitations:

• Cannot detect hidden solder joints
• May produce false positives
• Limited for complex assemblies

X-Ray Limitations:

• Higher equipment cost
• Slower compared to AOI
• Requires skilled operators

Knowing limitations helps you build a smarter inspection strategy.

When Should You Use AOI vs X-Ray in SMT?

Here’s a practical breakdown:

• Use AOI when:
  • High-volume production
  • Standard components
  • Need fast inspection
• Use X-ray when:
  • Complex PCB designs
  • BGA/QFN components
  • High reliability required

Best practice? Use both together.

Also Read: How Surface Mount Technology Increases PCB Assembly Efficiency?

AOI + X-Ray: The Smart Inspection Strategy

Relying on one method alone leaves gaps.

Combining both ensures:

• Surface + internal inspection
• Reduced defect escape rate
• Improved product reliability
• Higher production yield

This is how modern manufacturers optimize their PCB quality inspection process.

Real Impact of Inspection Methods (Industry Stats)

The takeaway: Better inspection = better margins + better products

How to Choose the Right PCB Inspection Technique

Before choosing between SMT inspection methods, consider:

• PCB complexity
• Component type (BGA, QFN, etc.)
• Production volume
• Budget
• Reliability requirements

There’s no one-size-fits-all only the right combination.

Build Reliable Electronics with the Right Inspection Partner

Choosing the right inspection method is important. But choosing the right manufacturing partner? That’s what truly defines your product quality.

At Cygnus Electronics, advanced PCB inspection techniques are built into every stage of production from AOI inspection PCB systems to high-precision X-ray inspection solder joints analysis.

If you want fewer defects, faster production, and reliable electronics:

Work with Cygnus and build it right the first time.

Final Takeaway:

If you’re still thinking about AOI vs X-ray inspection in SMT, you’re asking the wrong question.

The real answer is: Use both and build a complete inspection strategy.

Because in electronics manufacturing, what you don’t see…
is exactly what causes failures later.

FAQs

What is the difference between AOI and X-ray inspection in SMT?

AOI detects visible surface defects using cameras, while X-ray inspection identifies hidden defects inside solder joints and components.

Is AOI enough for PCB inspection?

AOI is effective for surface-level inspection but cannot detect internal defects. For complex PCBs, combining AOI with X-ray inspection is recommended.

Why is X-ray inspection important for BGA components?

BGA components have hidden solder joints that cannot be visually inspected. X-ray inspection ensures these joints are properly formed and reliable.

Which inspection method is more accurate?

X-ray inspection is more accurate for internal defects, while AOI is faster and efficient for surface-level inspection. Both are complementary.

The post AOI vs X-Ray Inspection in SMT appeared first on Cygnus.

That’s the danger of cold solder joints in reflow soldering: they don’t always show obvious signs at first. Yet over time, they quietly weaken connections, leading to intermittent failures, costly repairs, and even product recalls.

If you’re working with PCB assembly, understanding and preventing these defects isn’t optional, it’s essential for long-term reliability.

What Is a Cold Solder Joint in Reflow Soldering?

A cold solder joint occurs when the solder does not fully melt or properly bond during the reflow process, resulting in a weak electrical and mechanical connection. These joints often appear dull or uneven and can cause unstable circuit performance or complete failure over time.

In simple terms, it’s a connection that looks done but isn’t truly reliable.

How to Identify a Cold Solder Joint?

Spotting a cold solder joint PCB issue early can save significant time and cost. Here are the most common cold solder joint symptoms:

• Dull, grainy, or matte surface instead of a shiny finish
• Visible cracks or uneven solder distribution
• Poor wetting between component leads and pads
• Intermittent or unstable electrical signals

These are also considered key signs of bad solder joints, especially in high-density PCB assemblies.

Advanced detection methods include:

• Automated Optical Inspection (AOI)
• X-ray inspection (for hidden joints)
• Functional circuit testing

Why Cold Solder Joints Occur in Reflow Soldering?

Understanding the cold solder joint causes helps you prevent them at the source. Here are the most common reasons:

Insufficient Reflow Temperature:

If the temperature doesn’t reach the required level, solder won’t fully melt—resulting in weak bonding.

Improper Temperature Profile:

Incorrect soak time or uneven heating can prevent proper solder flow across the joint.

Poor Solder Paste Quality:

Expired or contaminated solder paste affects melting behavior and adhesion.

Oxidation on PCB or Components:

Oxidized surfaces block proper solder wetting, leading to weak joints.

Inadequate Flux Activity:

Flux plays a critical role in cleaning surfaces. If it’s ineffective, bonding fails.

These cold solder joint causes are often interconnected, making process control critical.

Hidden Risks of Cold Solder Joints:

Here’s where things get serious.

Cold solder joints in reflow soldering don’t just affect appearance they directly impact performance and reliability.

Key Risks:

• Intermittent circuit failures (hard to diagnose)
• Reduced product lifespan
• Increased warranty claims and returns
• Field failures in critical applications
• Safety risks in automotive, medical, or industrial systems

Industry insight:
A significant percentage of reflow soldering defects are linked to poor joint formation, making this a major reliability concern.

If you care about solder joint reliability PCB, this is a defect you cannot ignore.

Cold Solder Joints vs Proper Solder Joints:

How to Prevent Cold Solder Joints in Reflow?

Prevention is always more cost-effective than rework. Here’s how to improve solder joint reliability PCB:

Optimize Reflow Temperature Profile:

Ensure proper preheat, soak, peak, and cooling phases.

Use High-Quality Solder Paste:

Store paste correctly and avoid expired materials.

Maintain Clean PCB Surfaces:

Remove oxidation and contamination before assembly.

Ensure Accurate Stencil Printing:

Consistent solder paste deposition is critical.

Use the Right Flux Chemistry:

Match flux type with your process and materials.

These steps significantly reduce reflow soldering defects and improve overall production quality.

Inspection & Testing Methods:

To detect issues in a cold solder joint PCB, use:

• AOI (Automated Optical Inspection) – for visible defects
• X-ray Inspection – for hidden joints like BGAs
• Functional Testing – to verify real-world performance
• Thermal Stress Testing – to test durability under load

Early detection helps avoid major downstream failures.

Why the Right EMS Partner Makes All the Difference?

Cold solder joints are not just a technical issue they’re a process issue.

That’s why working with an experienced EMS provider matters.

With Cygnus Electronics, you get:

• Optimized reflow profiles
• Advanced inspection (AOI, X-ray)
• Strict quality control processes
• End-to-end PCB assembly expertise

Don’t let hidden defects compromise your product.
Partner with experts who prioritize precision and reliability from design to production.

Conclusion:

Cold solder joints may seem minor but their impact is anything but.

From hidden failures to costly recalls, these defects can quietly damage your product’s reputation and performance.

By understanding cold solder joint symptoms, addressing signs of bad solder joints, and eliminating root causes, you can build more reliable, high-performing PCBs.

In manufacturing, it’s not just about making connections it’s about making reliable connections that last.

FAQs

What causes cold solder joints in reflow soldering?

Cold solder joints are caused by insufficient heat, poor temperature profiles, oxidation, or low-quality solder paste that prevents proper bonding.

How can you identify cold solder joint symptoms?

Common cold solder joint symptoms include dull appearance, cracks, uneven solder, and unstable electrical performance.

Why are cold solder joints dangerous?

They lead to intermittent failures, reduced reliability, and long-term product issues, especially in critical applications.

What are the signs of bad solder joints?

Typical signs of bad solder joints include poor wetting, grainy texture, weak bonding, and inconsistent electrical conductivity.

The post Cold Solder Joints in Reflow: Hidden Risks You Shouldn’t Ignore appeared first on Cygnus.

But in reality…
It’s one of the biggest factors behind whether your PCB works perfectly or fails in the field.

A slight inconsistency in solder paste quality can trigger a chain reaction: poor wetting, uneven heating, and ultimately, costly reflow soldering defects.

And here’s the part most manufacturers overlook:
Many of the causes of soldering defects don’t start in the oven they start at the paste stage.

In this guide, we’ll break down how solder paste in PCB assembly influences defect formation, what goes wrong, and most importantly how to prevent reflow defects before they even begin.

What Is Solder Paste in PCB Assembly?

Solder paste in PCB assembly is a mixture of microscopic solder alloy particles and flux. It is applied to the PCB pads before components are placed and soldered during the reflow process.

Key Components:

• Solder Alloy (e.g., SAC305): Forms the electrical and mechanical bond
• Flux: Removes oxides and enables proper wetting
• Additives: Control viscosity and performance

Why It Matters:

The performance of solder paste in PCB assembly determines:

• How well components adhere
• How evenly solder melts
• How reliable the final connection is

Why Solder Paste Quality Matters in Reflow Soldering?

Think of solder paste as the foundation of your PCB.

If the foundation is unstable, everything built on top of it is at risk.

Impact on Solder Joint Reliability:

Poor solder paste quality leads to weak bonds, directly affecting solder joint reliability PCB performance.

Influence on Manufacturing Yield:

Defective paste increases rejection rates, rework, and production delays.

Increased Defect Rates:

Studies show a significant portion of reflow soldering defects are linked to paste-related issues.

This is why solder paste quality is not just a material choice it’s a production strategy.

Common Reflow Defects Caused by Poor Solder Paste Quality:

When solder paste defects occur, they often show up as visible and performance issues during reflow.

Solder Bridging:

• Excess paste causes connections between adjacent pads

Tombstoning:

• Uneven wetting lifts one side of a component

Voiding:

• Trapped gases from poor flux lead to air pockets

Solder Balling:

• Paste splatter due to contamination or poor formulation

Cold Solder Joints:

• Improper flux activation prevents proper bonding

These are some of the most common causes of soldering defects, and most of them trace back to paste issues not just temperature profiles.

Key Factors That Define Solder Paste Quality:

Not all paste is created equal.

Here’s what separates high-performance paste from problematic ones:

Particle Size & Distribution:

• Fine pitch boards require smaller particles (Type 4 or 5)

Flux Chemistry:

• Determines wetting and oxide removal efficiency

Viscosity & Rheology:

• Controls how paste spreads and holds shape

Shelf Life & Storage:

• Degraded paste leads to inconsistent printing

Oxidation Levels:

• Oxidized particles reduce bonding strength

Each of these directly impacts the solder paste impact on reflow and overall process stability.

Also Read: Common Reflow Soldering Defects

How Solder Paste Quality Affects the Reflow Process?

The solder paste impact on reflow is seen across multiple stages:

Printing Performance:

• Poor paste → uneven deposits

Wetting Behavior:

• Low-quality paste → incomplete bonding

Slump Control:

• Excess spreading → bridging defects

Outgassing:

• Poor flux → increased voiding

This is where solder paste quality becomes critical—not just before reflow, but throughout the entire thermal cycle.

Signs of Poor Solder Paste Quality (Quick Diagnosis):

Not sure if your paste is the issue?

Watch for these signs:

• Inconsistent paste deposits
• Excessive solder balls
• Poor wetting and bonding
• High defect rates during inspection

These indicators often point directly to solder paste defects rather than process issues.

Best Practices to Maintain Solder Paste Quality:

If you want to improve solder joint reliability PCB performance, start here:

roper Storage:

• Keep paste at controlled temperatures (0–10°C)

Controlled Thawing:

• Avoid condensation and moisture issues

Stencil Maintenance:

• Clean regularly to ensure consistent printing

Paste Handling:

• Mix properly before use

FIFO Method:

• Use older paste first to avoid degradation

These steps are essential when learning how to prevent reflow defects effectively.

Also Read: Impact of Incorrect Flux Volume on Soldering Quality and Reliability

How to Choose the Right Solder Paste?

Choosing the right paste depends on:

PCB Complexity:

• High-density boards require finer paste

Component Size:

• Fine pitch → smaller particle size

Thermal Profile:

• Match paste with reflow conditions

Industry Requirements:

• Automotive & medical need higher reliability

The right selection improves both performance and reduces the risk of reflow soldering defects.

Advanced Insight: How Experts Optimize Solder Paste Performance

Modern EMS providers don’t rely on guesswork.

They use:

• Process monitoring systems
• AOI & X-ray inspection
• Data-driven optimization

This ensures maximum solder joint reliability PCB and minimal defect rates.

Conclusion:

In PCB manufacturing, small details create big outcomes.

And solder paste quality is one of those details that quietly determines success or failure.

From preventing solder paste defects to improving yield and reliability, the right approach to paste selection and handling can transform your entire production process.

If you want to consistently reduce defects and improve performance, the focus shouldn’t just be on reflow profiles…

…it should start with the paste itself.

FAQs

What defects are caused by poor solder paste quality?

Poor solder paste quality can cause bridging, tombstoning, voiding, solder balling, and cold joints due to improper wetting and contamination.

How does solder paste affect reflow soldering?

Solder paste in PCB assembly controls how components bond during reflow, directly influencing wetting, heat transfer, and defect formation.

What are the main causes of soldering defects?

The most common causes of soldering defects include poor paste quality, incorrect storage, improper stencil design, and incorrect reflow profiles.

How can you prevent reflow defects?

To prevent reflow defects, ensure proper paste storage, correct handling, optimized stencil design, and controlled reflow profiles.

The post How Solder Paste Quality Impacts Reflow Defects (Complete Guide) appeared first on Cygnus.

That’s why understanding PCB pad design guidelines isn’t optional, it’s essential. If you want fewer defects, better yields, and reliable boards, it all begins here.

What Is PCB Pad Design?

PCB pad design refers to the layout, size, and shape of conductive areas on a PCB where components are soldered.

These pads act as the connection point between components and the board. In PCB pad design for reflow soldering, even minor inconsistencies can affect how solder melts, flows, and solidifies.

Why PCB Pad Design Matters in Reflow Soldering?

Pad design directly controls solder behavior during reflow.

If your pad design is off, you’re likely to face:

• Uneven solder distribution
• Component misalignment
• Weak solder joints

Good PCB pad design to avoid soldering defects ensures:

• Balanced heat distribution
• Stable component placement
• Consistent solder joints

In short, it’s one of the most effective strategies for reflow soldering defects prevention.

Common Reflow Issues Caused by Poor Pad Design:

Before fixing the problem, it’s important to recognize it.

1. Tombstoning:

One side of a component lifts during reflow due to uneven heating or pad imbalance.

2. Solder Bridging:

Excess solder or tight spacing causes unintended connections between pads.

3. Solder Balling:

Small solder spheres form due to improper solder paste control or pad design.

4. Insufficient or Excess Solder:

Leads to weak joints or short circuits.

Most of these issues trace back to poor pad geometry or layout decisions.

Key PCB Pad Design Guidelines to Avoid Reflow Issues:

This is where real improvement happens. Follow these SMT pad design best practices to ensure better results.

1. Optimize Pad Size and Shape:

• Match pad dimensions to component specifications
• Avoid oversized pads (can cause solder bridging)
• Avoid undersized pads (leads to weak joints)

Proper sizing improves solder joint reliability PCB performance.

2. Maintain Proper Pad Spacing:

• Ensure adequate clearance between pads
• Follow IPC standards for spacing
• Prevent solder bridging during reflow

Spacing isn’t just design it’s defect prevention.

3. Ensure Thermal Balance:

• Keep pad sizes symmetrical
• Avoid uneven copper distribution
• Ensure equal heat exposure

Uneven heating is a major cause of tombstoning.

4. Control Solder Paste Volume:

• Use precise solder paste stencil design
• Avoid excessive solder deposition
• Ensure uniform paste distribution

Too much solder = bridging
Too little solder = weak joints

Balance is everything.

5. Maintain Pad Symmetry:

• Symmetrical pad design keeps components stable
• Reduces shifting during reflow
• Improves placement accuracy

6. Choose the Right Solder Mask Design:

• NSMD (Non-Solder Mask Defined): Better solder joint reliability
• SMD (Solder Mask Defined): Better for fine-pitch components

Choosing the right type impacts long-term durability.

IPC Standards and Best Practices for Pad Design:

Following industry standards isn’t just a recommendation it’s a necessity.

Key Standard: IPC-7351

• Defines pad dimensions and layouts
• Ensures compatibility with components
• Reduces manufacturing risks

Aligning your design with IPC standards strengthens PCB layout design tips and improves production consistency.

Also Read: Reworking and Repairing Coated PCBs: What You Need to Know?

How Pad Design Impacts Solder Joint Reliability?

The strength of your PCB depends on the quality of its solder joints.

Good pad design ensures:

• Strong mechanical bonding
• Reliable electrical connections
• Resistance to thermal stress

Poor design, on the other hand, leads to:

• Cracked joints
• Intermittent connections
• Reduced product lifespan

This is why solder joint reliability PCB performance starts at the design stage—not during assembly.

Design for Manufacturability (DFM) in PCB Pad Layout:

Great designs don’t just look good they manufacture well.

Why DFM matters:

• Identifies design issues before production
• Reduces costly rework
• Improves yield and efficiency

Collaborating with manufacturers early ensures your PCB pad design for reflow soldering is optimized from day one.

Tools and Software for Optimizing PCB Pad Design:

Modern tools make it easier to avoid errors.

Popular tools:

• Altium Designer
• KiCad
• Eagle PCB

What they help with:

• Design rule checks (DRC)
• Thermal simulation
• Pad and footprint optimization

Using the right tools strengthens your PCB layout design tips and minimizes risks.

How EMS Providers Improve PCB Pad Design in Canada?

Working with experienced EMS partners can significantly reduce defects.

They offer:

• Design validation and DFM reviews
• Prototyping and testing
• Process optimization for reflow

This is especially valuable for complex or high-volume production.

Improve Your PCB Reliability with Expert Support:

If you want to reduce defects, improve yield, and ensure long-term performance, the right partner makes all the difference.

Cygnus Electronics provides expert PCB assembly support, including design validation, process optimization, and advanced manufacturing solutions. Their team helps you implement proven PCB pad design guidelines and SMT pad design best practices—so your boards perform reliably from prototype to production.

Final Thoughts: Design Smarter, Manufacture Better

Reflow defects aren’t random they’re predictable. And more importantly, they’re preventable.

By following the right PCB pad design guidelines, optimizing solder paste stencil design, and focusing on manufacturability, you can eliminate common issues before they even begin.

Because in PCB manufacturing, the best fix… is designing it right the first time.

FAQs

What are PCB pad design guidelines?

They are best practices for pad size, spacing, and layout to ensure proper soldering and reliable PCB performance.

How does PCB pad design affect reflow soldering?

It controls solder flow, heat distribution, and component stability, directly impacting defect rates.

What is the role of solder paste stencil design?

It determines how much solder is applied to pads, affecting joint quality and preventing defects like bridging.

How can I improve solder joint reliability in PCB assembly?

By optimizing pad design, ensuring thermal balance, and following SMT pad design best practices.

The post PCB Pad Design Guidelines to Avoid Reflow Issues appeared first on Cygnus.

What Is Solder Joint Reliability & Why It Matters?

Solder joint reliability in PCB assembly refers to the ability of a solder connection to maintain strong electrical and mechanical integrity over time. These tiny joints may look insignificant but they are the backbone of every electronic device.

A single weak joint can lead to:

• Intermittent connections
• Device malfunction
• Complete system failure

In fact, a significant percentage of electronic failures can be traced back to common solder joint defects, making reliability a top priority for manufacturers.

When solder joints are reliable, products perform better, last longer, and reduce costly returns or warranty claims.

Common Causes of Solder Joint Failures in PCB Assembly:

Before improving reliability, you need to understand what goes wrong.

Cold Solder Joints

One of the most frequent issues. These occur when solder doesn’t melt properly, resulting in weak and unreliable connections.

If you’re wondering how to prevent cold solder joints, it starts with proper temperature control and correct process settings.

Insufficient Wetting

Poor wetting prevents solder from properly bonding with the pad or component lead. This is often caused by oxidation or low flux activity in soldering.

Voids and Cracks

Air pockets (voids) and micro-cracks can form during the soldering process, weakening the joint and making it prone to failure under stress.

Thermal Fatigue

Repeated heating and cooling cycles cause expansion and contraction, leading to solder joint fatigue over time.

Contamination

Dust, oil, or residues on PCB surfaces can interfere with bonding, reducing overall joint strength.

Key Factors That Affect Solder Joint Reliability

Improving electronic manufacturing reliability starts with controlling key process variables.

Solder Paste Quality and Handling

Solder paste plays a crucial role in joint formation. Poor storage or expired paste can lead to inconsistent results.

Best practices:

• Store at recommended temperatures
• Mix properly before use
• Monitor shelf life

Reflow Temperature Profile Optimization

The reflow process must follow a carefully controlled temperature curve.

• Too low → incomplete melting
• Too high → component damage

Optimizing this is a core part of PCB assembly process optimization.

PCB Design and Pad Layout

Design impacts reliability more than most people realize.

• Proper pad sizing improves wetting
• Balanced layouts reduce stress
• Design for manufacturability (DFM) minimizes defects

Flux Selection and Application

Flux activity in soldering directly affects how well solder bonds.

• Removes oxidation
• Enhances wetting
• Improves joint strength

Choosing the right flux type and applying it correctly is critical.

Proven Techniques to Improve Solder Joint Reliability

Now let’s get practical. These are proven strategies used by high-quality manufacturers.

Optimize the Reflow Soldering Process

A well-tuned reflow profile ensures consistent soldering results.

• Controlled ramp-up rates
• Proper soak time
• Gradual cooling

This is one of the most effective PCB soldering best practices.

Use High-Quality Materials

Low-quality materials lead to long-term problems.

• Reliable solder alloys
• High-grade PCB substrates
• Trusted component sourcing

Better inputs = better reliability.

Implement Advanced Inspection Techniques

Strong solder joint inspection methods are essential for quality control.

Common methods include:

• Automated Optical Inspection (AOI)
• X-ray inspection (for hidden joints like BGAs)
• Visual inspection for surface defects

These fall under critical PCB assembly quality control methods.

Maintain a Clean Manufacturing Environment

Contamination is often overlooked but highly damaging.

• Use cleanroom practices where possible
• Control humidity and dust
• Ensure proper handling procedures

Role of Inspection & Testing in Reliability

Inspection isn’t just about catching defects it’s about preventing failures.

Key Solder Joint Inspection Methods:

• AOI (Automated Optical Inspection): Detects visible defects quickly
• X-ray Inspection: Identifies hidden issues like voids
• Functional Testing: Ensures the PCB works under real conditions

Additionally, reliability testing such as thermal cycling helps simulate real-world stress.

These methods collectively strengthen electronic manufacturing reliability and reduce field failures.

Lead-Free vs Leaded Solder: Reliability Considerations

With environmental regulations like RoHS, lead-free solder is now standard—but it comes with challenges.

Lead-Free Solder

• Higher melting point
• More prone to thermal fatigue

Leaded Solder

• Better mechanical flexibility
• Lower melting temperature

Understanding these differences helps manufacturers adapt their PCB soldering best practices accordingly.

Design for Reliability (DFR): Fix Problems Before They Start

The smartest way to improve reliability? Prevent issues before production begins.

DFR Strategies:

• Optimize component placement
• Avoid thermal hotspots
• Collaborate between design and manufacturing teams

Up to 80% of product costs and reliability outcomes are influenced during the design phase making this step critical.

Common Mistakes to Avoid in PCB Soldering

Even experienced manufacturers make these mistakes:

• Incorrect reflow profiles
• Poor stencil design
• Ignoring inspection processes
• Using low-quality materials
• Overlooking environmental factors

Avoiding these ensures stronger, more durable solder joints.

Final Thoughts: Building Long-Term PCB Reliability

Improving solder joint reliability in PCB assembly isn’t about one single fix—it’s about consistency across the entire process.

From material selection and design to inspection and testing, every step plays a role.

When done right, it leads to:

• Fewer defects
• Longer product lifespan
• Higher customer satisfaction

Work with Experts Who Prioritize Reliability

If you’re looking to improve PCB assembly quality control methods, optimize your manufacturing process, and ensure long-term reliability partner with experts who understand every detail.

Cygnus Electronics specializes in precision PCB assembly, advanced inspection techniques, and process optimization that ensures every solder joint performs under real-world conditions.

Build smarter, more reliable electronics connect with Cygnus Electronics today.

FAQs

What are the most common solder joint defects?

Common solder joint defects include cold joints, insufficient wetting, voids, cracks, and bridging. These issues can significantly impact PCB performance and reliability.

How to prevent cold solder joints in PCB assembly?

To prevent cold solder joints, ensure proper temperature control during reflow, use high-quality solder paste, and maintain correct process parameters.

Why is flux important in soldering?

Flux removes oxidation, improves wetting, and ensures a strong bond between components and the PCB, making it essential for reliable solder joints.

What are the best solder joint inspection methods?

The most effective methods include AOI, X-ray inspection, and functional testing, all of which help detect defects and improve overall PCB quality.

The post How to Improve Solder Joint Reliability in PCB Assembly appeared first on Cygnus.
